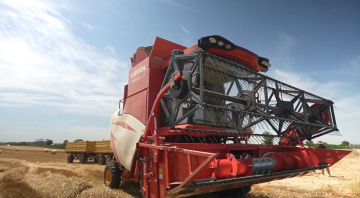

The Lovol GV100 is a modern yet simple mid-range combine harvester, designed specifically for small and medium-sized individual farms. This model combines high operational efficiency, reliability, and advanced technology that meets the latest Stage V emission standards. The AUPAX GV100 delivers excellent harvesting performance while helping to reduce operating costs.
*in polish market Lovol GV100 is offered under Aupax brand
Performance and drivetrain
At the heart of the GV100 is the Weichai WP4.6NG190E670 engine – a 4-cylinder, 4-stroke, water-cooled diesel unit with direct injection. It delivers 140 kW (190 HP) at 2200 rpm and complies with EU Stage V emission regulations, making the machine both efficient and environmentally responsible.
A large 310-liter diesel tank ensures long operating time in the field without frequent refueling, which is critical during peak harvest days.
Power is transferred via a 3-speed gearbox with speeds of up to 35 km/h in the highest gear and up to 10 km/h in reverse, providing versatile operation both in the field and on the road.
Header and cutting system
The GV100 features a 4.57-meter-wide header, supported by a hydraulic lift system. The Type IV cutting knife, driven by a swing ring gearbox, ensures clean and precise cuts even in tough field conditions.
The spiral auger with a 610 mm diameter ensures smooth and consistent crop flow into the threshing system.
The eccentric spring tooth reel, with a 1000 mm diameter and six arms, improves feeding performance, while the adjustable 10–15 mm clearance under the auger allows fine-tuning for different crop types.
Threshing and cleaning system
The threshing system is built around a single rasp bar drum (660 mm diameter × 1180 mm length) and a grid-type concave, providing efficient separation of grain from straw.
A centrifugal fan (510 mm diameter, 4 blades) supplies powerful airflow for cleaning, while a tailings re-thresher ensures minimal grain loss.
The 4 straw walkers, each 3040 mm long, offer a total separation area of 4.11 m², improving straw throughput and grain retention. The machine is equipped with a 4.5 m³ grain tank, enabling longer working intervals before unloading.
Unloading is performed through a high-level electro-hydraulic discharge system with a 4.5 m outlet height.
Chassis and mobility
The GV100 rides on large agricultural tires (600/70R28 at the front and 320/70R20 at the rear), providing traction and stability across a variety of field conditions.
The ground clearance is ≥350 mm, and the minimum turning radius is just 6.9 m, ensuring excellent maneuverability.
The braking system includes front disc brakes and rear drum brakes, while steering is fully hydraulic (BZZ1-100 unit), enabling precise and effortless control.
Operator comfort and cabin
The GV100 is equipped with a spacious, soundproofed, air-conditioned Class IV cab, designed for long hours of operation in comfort.
An ergonomic control panel, adjustable seat, and excellent visibility contribute to a safe and fatigue-free working environment.
The AUPAX GV100 is a dependable and efficient solution for small and medium-sized farms seeking a cost-effective harvester with modern technology. With its user-friendly operation, robust construction, and compliance with EU emission standards, the GV100 is a practical investment for achieving high harvest performance with lower running costs.
